Bias Tee / Diplexer
BTS SMA Series
Broadband RF, DC and reference-frequency combining for satellite,
microwave and RF system applications.
Broadband Bias Tee / Diplexer

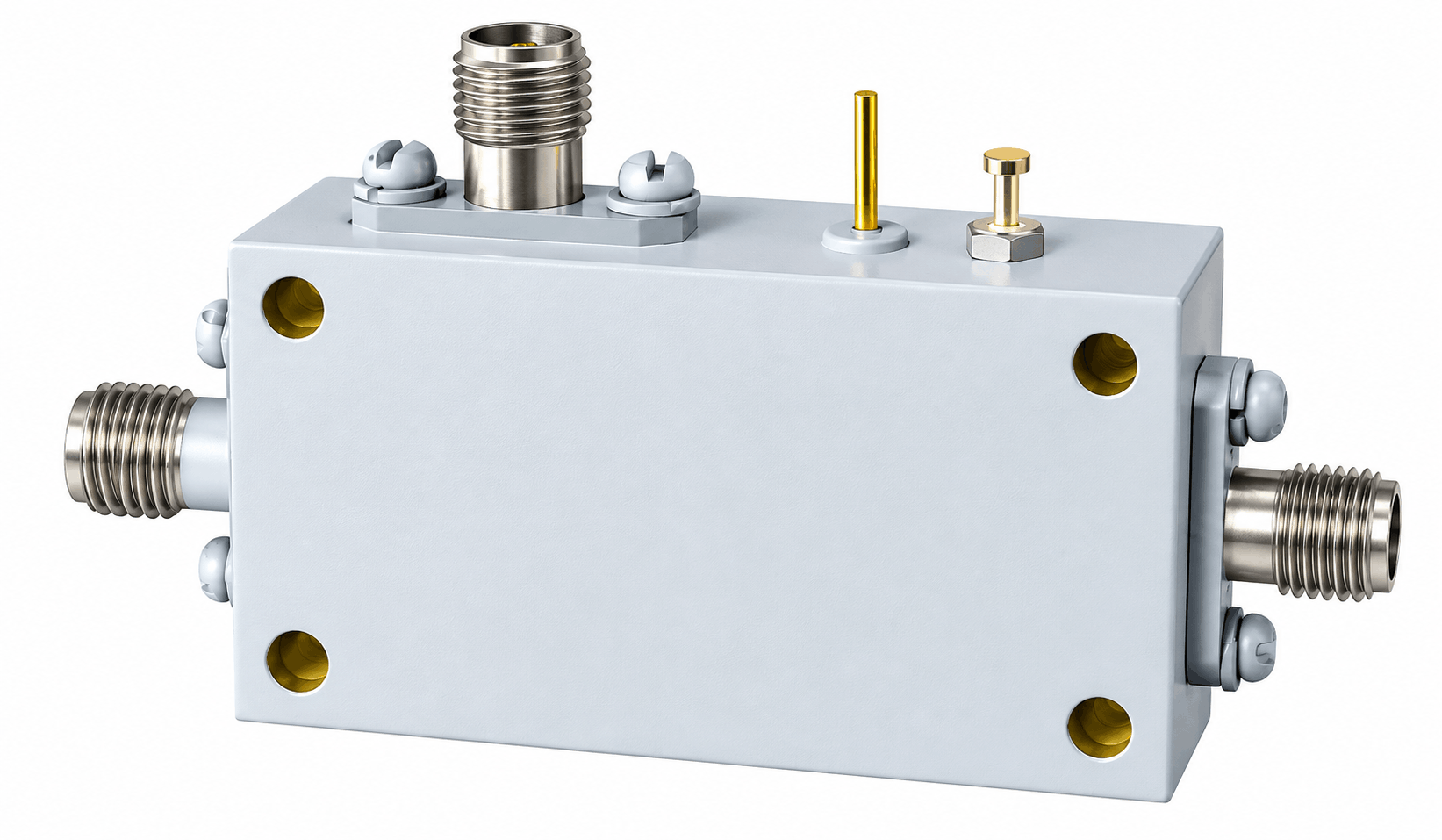

Taylor Microwave’s BTS SMA Series combines bias tee and
diplexer functions in a compact RF assembly for applications
requiring DC power and an external reference frequency on a
common RF transmission path.
The BTS series is designed for RF and microwave systems where
low loss, isolation and controlled impedance are important.
Models are available for applications extending to 40 GHz.
-
✓
Broadband operation from 100 MHz to 40 GHz, model dependent -
✓
Low RF insertion loss -
✓
High RF-to-IF isolation on selected models -
✓
50 Ohm RF system compatibility -
✓
SMA coaxial connections -
✓
DC power and external reference-frequency injection
Bias Tee / Diplexer Function
A bias tee allows DC power to be applied to an RF transmission
line while maintaining the RF signal path. The diplexer function
provides frequency-selective coupling of an external reference
signal.
The BTS SMA Series can therefore be used to place supply voltage
and an external reference frequency onto an RF output for
applications such as remote powering of LNBs and Block Up
Converters.
Key Features
General Electrical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 0.1 to 40 GHz |
| RF Insertion Loss | 2.5 dB RF Input to Output |
| IF Input Frequency | Up to 500 MHz |
| Input Voltage / Current | Up to 200 V / 5000 mA |
| RF-to-IF Isolation | 25 dB minimum |
BTS SMA Series Models
| Model | RF Frequency Range | RF-to-IF Isolation Min. |
RF-to-RF Insertion Loss Max. |
VSWR Max. |
DC Power | IF-to-RF Loss Max. |
IF Frequency |
|---|---|---|---|---|---|---|---|
| BTS-A01 | 1000–20000 MHz | 25 dB | 2.50 dB | 2:1 | 50 V @ 750 mA | 1.25 dB | 5–200 MHz |
| BTS-A01-1 | 100–20000 MHz | 45 dB | 3.0 dB | 2:1 | 50 V @ 750 mA | 0.60 dB | 5–20 MHz |
| BTS-G01 | 105 MHz–40 GHz | 25 dB | 2.5 dB | 2:1 | 50 V @ 750 mA | 1.0 dB | 5–20 MHz |
| BTS-A01-2 | 145–20000 MHz | 45 dB | 3.0 dB | 2:1 | 50 V @ 750 mA | 1.25 dB | 5–50 MHz |
Specifications shown are based on the published BTS SMA Series data.
Contact Taylor Microwave for current production specifications,
availability and application-specific requirements.
Applications
Bias and reference-frequency injection for satellite RF systems.
Remote DC power and reference-frequency applications for LNBs.
Combine DC supply and reference signals with the RF path.
Laboratory and production test equipment applications.
External reference-frequency injection onto an RF output.
Compact solution for combining multiple signal functions.
Compact RF Integration
The BTS SMA Series provides a compact way to combine RF,
DC power and a reference signal without requiring separate
external assemblies. Model selection can be based on RF
frequency range, IF/reference frequency, isolation,
insertion loss and DC requirements.
