Attenuators
TAYLOR MICROWAVE, INC.
RF & Microwave Components
Solid-State Attenuators
High-Performance Components for RF and Microwave Applications
DAT & AT SERIES
Electronic control. Flexible attenuation.
Taylor Microwave solid-state attenuators provide electronically controlled signal-level adjustment. DAT Series units combine switched diode-resistor networks with T-pad attenuation elements to select discrete attenuation values.
Overall frequency coverage*
Attenuation options*
*Frequency coverage and attenuation configuration depend on the design. Listed DAT models cover 500 MHz–8 GHz.
Insert product photo here

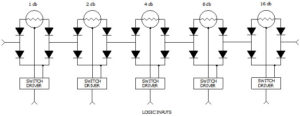

Attenuator Circuit
Features & Configuration
DAT Series
Discrete attenuation is selected by switching individual diode-resistor sections. Bit count and attenuation values can be configured for the application.
AT Series
Electronically controlled attenuation uses diode-resistor networks to maintain low VSWR across attenuation settings. Contact us for specifications for your application.
DAT Series — Model Selection
| Model | Frequency (MHz) | Insertion Loss per Bit (dB) |
VSWR Maximum |
|---|---|---|---|
| DAT-0510 | 500–1000 | 0.40 | 1.3 |
| DAT-1020 | 1000–2000 | 0.50 | 1.5 |
| DAT-2040 | 2000–4000 | 0.65 | 1.5 |
| DAT-4080 | 4000–8000 | 1.00 | 1.7 |
Attenuation Accuracy vs. Frequency
Accuracy in ±dB for the attenuation ranges shown.
| Model | <10 dB | <20 dB | <30 dB | <40 dB | <50 dB | <60 dB |
|---|---|---|---|---|---|---|
| DAT-0510 | 0.60 | 1.0 | 1.2 | 1.25 | 1.5 | 2.2 |
| DAT-1020 | 0.60 | 1.0 | 1.4 | 1.7 | 2.0 | 2.5 |
| DAT-2040 | 0.70 | 1.1 | 1.5 | 1.7 | 2.0 | 2.8 |
| DAT-4080 | 0.70 | 1.3 | 1.7 | 1.9 | 2.0 | 3.2 |
Confirm required performance and configuration with Taylor Microwave before ordering.
Specify Your Attenuator
Send your frequency range, attenuation range, step size, bit count, RF power, control requirements, connector preference, and quantity. We will review the appropriate configuration and provide a quotation.
