3-Way Toroidal Ferrite Power Dividers
PD3T SMA Series
High-Performance Components for RF and Microwave Applications
Broadband 3-Way Ferrite Power Division from 1 MHz to 2 GHz

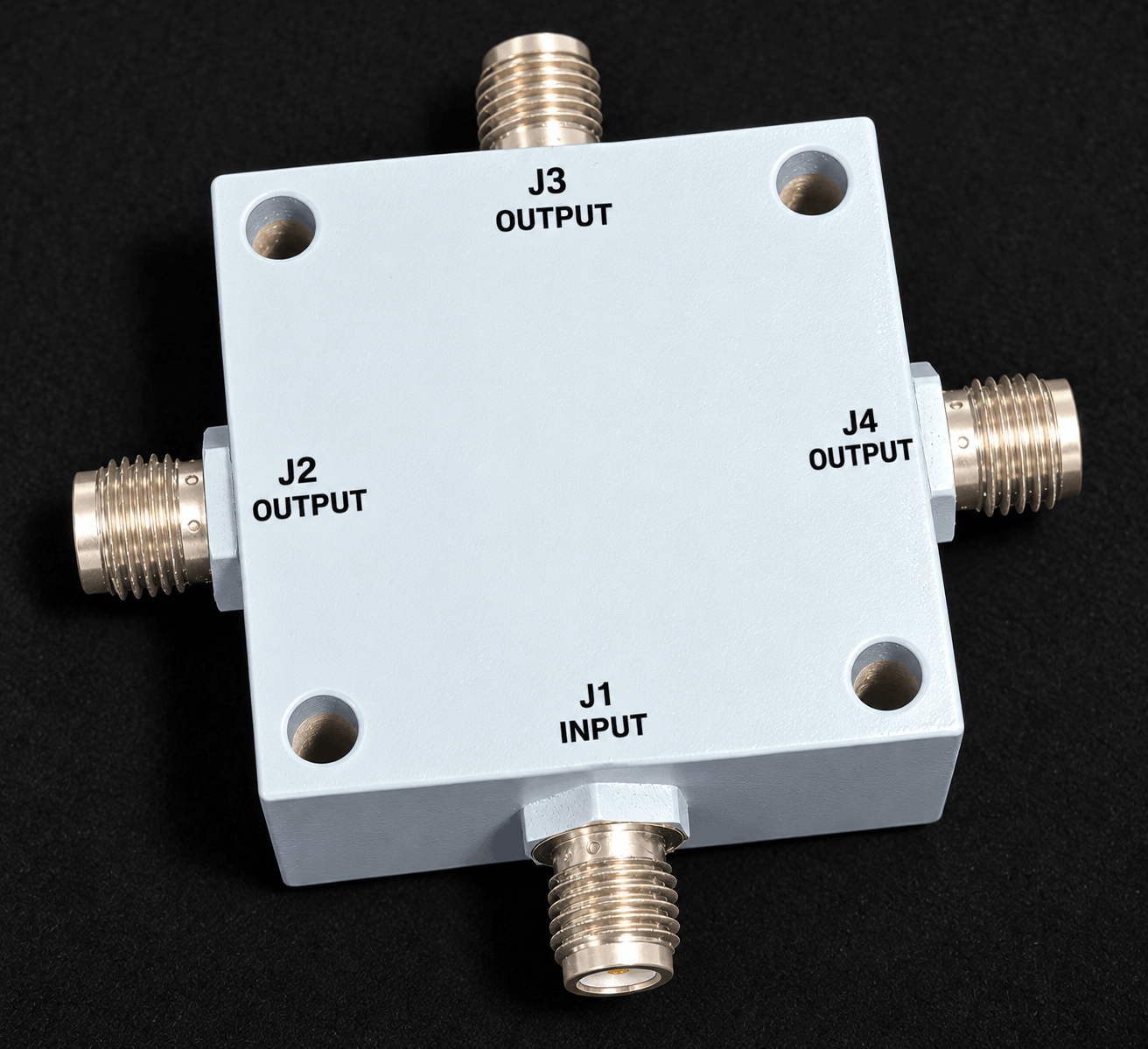

Taylor Microwave PD3T Series 3-Way Toroidal Ferrite Power Dividers
provide low-loss, repeatable RF power division using a broadband
ferrite balun transformer design.
provide low-loss, repeatable RF power division using a broadband
ferrite balun transformer design.
PD3T Series
3-Way • Toroidal Ferrite • SMA
Custom connector configurations available
Key Features
✓ Frequency coverage from 1 MHz to 2 GHz
✓ Low insertion loss
✓ Excellent repeatability
✓ Broadband ferrite balun transformer design
✓ Standard 3-way power division
✓ Up to 20 dB isolation on standard models
✓ Higher isolation configurations available
✓ Custom frequency bands available
✓ High-power designs available
✓ Economical RF and microwave solution
Custom Designs
Frequency range, isolation, power handling and other electrical
specifications can be optimized for your application.
Frequency range, isolation, power handling and other electrical
specifications can be optimized for your application.
Typical 3-Way Toroidal Ferrite Power Divider Schematic
Product Description
Taylor Microwave’s PD3T Series 3-Way Toroidal Ferrite Power Dividers
are broadband RF power dividers designed for applications requiring
low insertion loss, good isolation and repeatable electrical performance.
The ferrite balun transformer construction provides a compact and
cost-effective solution for dividing an RF input signal into three
output signals. Standard SMA configurations are available, along with
BNC, TNC, Type N and F connector options.
Electrical Specifications
| Part Number | Frequency MHz |
Insertion Loss Max. dB |
Isolation Min. dB |
VSWR IN / OUT Max. |
Input Power Watts Max. |
Phase Balance ±° Max. |
Amplitude Balance ± dB |
|---|---|---|---|---|---|---|---|
| PD3T-11000 | 1–1000 | 1.5 | 20 | 1.5 / 1.5 | 1 | 1 | 0.20 |
| PD3T-10500 | 10–500 | 1.0 | 20 | 1.3 / 1.2 | 5 | 1 | 0.20 |
| PD3T-10100 | 10–1000 | 1.2 | 20 | 1.5 / 1.2 | 5 | 1 | 0.20 |
| PD3T-10150 | 10–1500 | 2.0 | 20 | 1.5 / 1.5 | 5 | 2 | 0.30 |
| PD3T-52000 | 5–2000 | 3.0 | 15 | 1.7 / 1.7 | 1 | 2 | 0.30 |
Options & Additional Specifications
• Bandwidth available up to 36:1 ratio
• Higher isolation available
• Up to 5 W CW available
• Custom frequency bands available
• Optimized electrical specifications available
• Custom mechanical configurations available
Connectors & Power
Standard Connector: SMA Female
Optional Connectors: BNC, TNC, Type N and F
Power: Standard ratings shown in table
High Power: Up to 5 W CW available
Power rating applies with load VSWR better than 1.20:1.
Typical Applications
RF Test Systems •
Communication Systems •
Signal Distribution •
Laboratory Equipment
Communication Systems •
Signal Distribution •
Laboratory Equipment
Need a Custom 3-Way Power Divider?
Taylor Microwave can provide custom frequency ranges, higher isolation,
increased power handling, alternative connectors and application-specific
electrical performance.
increased power handling, alternative connectors and application-specific
electrical performance.
