BT-HC01
High-Current Broadband Bias Tees
excellent RF performance. Covering 100 kHz to 2 GHz,the BT-HC01 provides up to 30 Amps DC continuous current
for demanding high-power RF and microwave applications.
100 kHz–2 GHz
30 A
Designed for demanding RF applications
Product Description

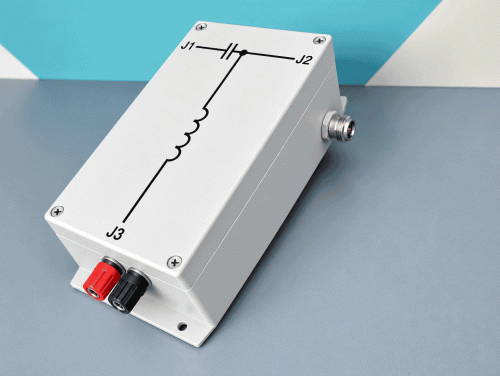

The BT-HC01 is a high-current broadband bias tee designed to inject DC power onto an RF transmission line while providing
excellent isolation between the RF and DC paths.
Its high-current design makes it suitable for applications requiring substantial DC power while maintaining the integrity
of broadband RF signals.
Standard Bias Tee Specifications
| Model | (1) Frequency Range | Insertion Loss (dB Max.) | (2) Isolation (dB Min.) | VSWR (Max.) | (3) Input Power (dBm Max.) | (4) DC Current Amps Max. | (5) Bias Voltage Vdc Max. | (6) Bias Frequency Bandwidth |
|---|---|---|---|---|---|---|---|---|
| BT-HC01 | 100KHz to 2 GHz | 1.75 | 50 | 1.5:1 | + 40.00 (10W CW) | 20 | 50 | DC to 1KHz |
| BT-HC01-L | 3MHz to 2 GHz | 2.00 | 50 | 1.5:1 | + 40.00 (10W CW)* | 20 | 50 | DC to 30KHz |
View PDF Datasheet
Features
- Broadband operation from 100 kHz to 2 GHz
- Up to 30 Amps DC continuous current
- 50 Ohm RF transmission path
- Low RF insertion loss
- Excellent impedance matching
- High-current DC power injection
- Designed for demanding RF and microwave systems
- Compact and rugged construction
Applications
Custom Designs Available
Taylor Microwave can provide custom bias tee configurations to meet specific frequency, voltage, current, power, connector,
and mechanical requirements.
Contact Taylor Microwave with your application requirement for assistance with a custom design.
Request a Quote
Contact Taylor Microwave for pricing, availability,
and custom bias tee requirements.
