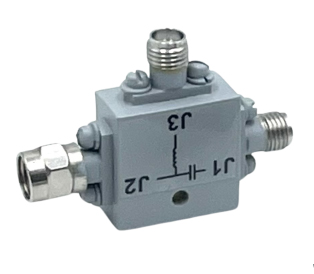

Bias Tee BT-A1
BT-A1
Broadband Bias Tee
250 kHz – 27 GHz • Up to 2 Amps DC • Small Size • Low Loss
COMPACT SIZE
0.750″ × 0.750″ × 0.350″
Features
- 250 kHz to 27 GHz
- Up to 2 A DC
- Low insertion loss
- Excellent VSWR
- 50 Ω impedance
- Compact lightweight package
|
Specifications |
|
|---|---|
| Frequency Range | 250 kHz – 27 GHz |
| DC Current | 2 A Continuous |
| Impedance | 50 Ω |
| Insertion Loss | < 2.0 dB Typical |
| VSWR | < 1.6:1 Typical |
| RF Connectors | SMA Female |
| DC Port | Terminal/SMA Female |
| Operating Temp | -40°C to +85°C |
Description
The BT-A1 Broadband Bias Tee combines RF and DC power onto a single coaxial line while maintaining excellent RF performance. Covering an exceptionally wide frequency range from 250 kHz to 27 GHz, the compact design provides up to 2 Amps DC continuous current with low insertion loss and excellent impedance matching. It is ideal for powering LNAs, active antennas, RF amplifiers, laboratory equipment, and microwave communication systems.
